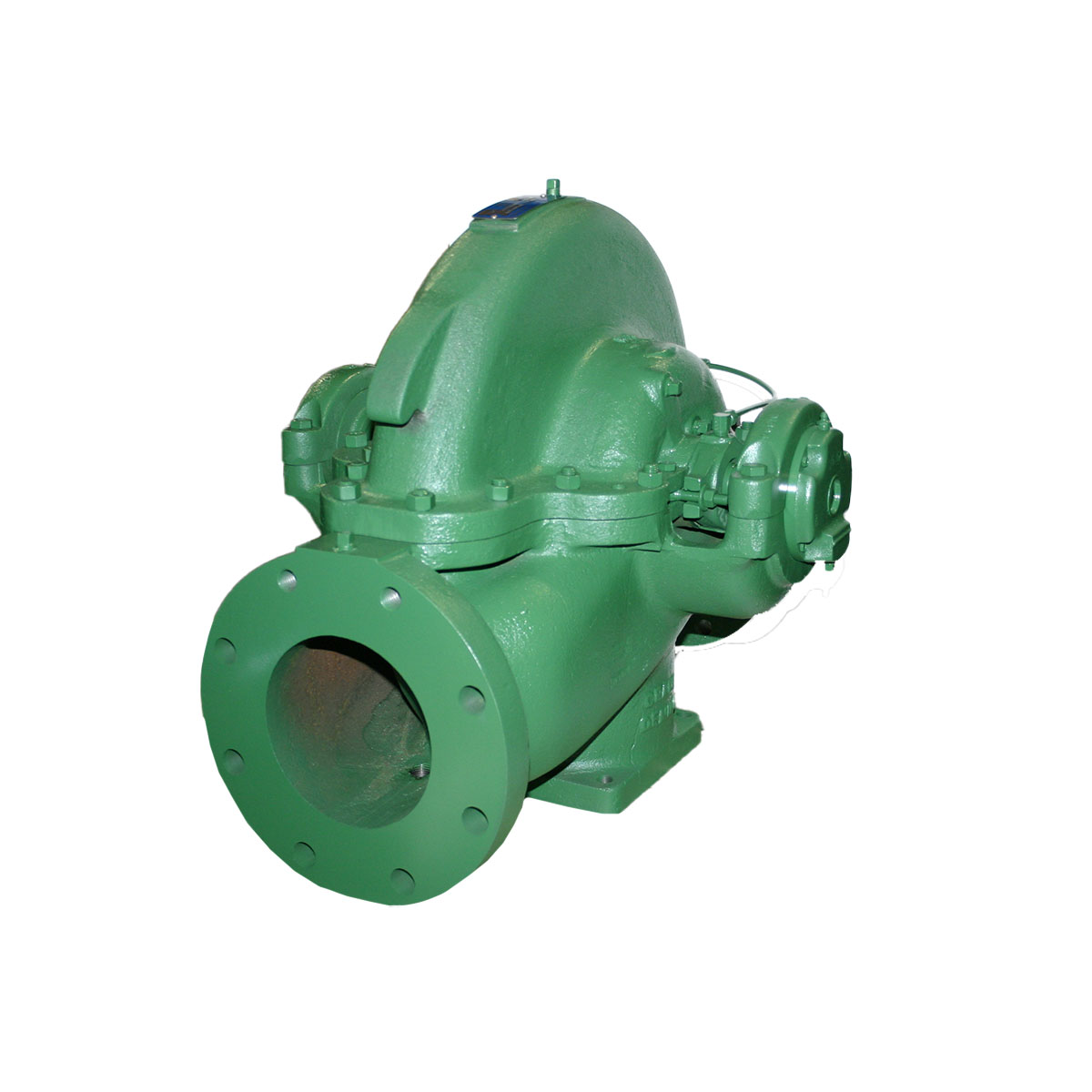

Deming Split Case Pumps
Flows To: 7,000 gpm
Heads To: 500 ft
Discharge: 1.5-12″
HP: 0.75 – 350
Deming Split Case Pumps
MODEL: 5060 Single-Stage Series
Deming horizontal split-case single stage, general purpose split case pumps are designed for continuous service handling of both hot and cold fluids.
Flows To: 7,000 gpm
Heads To: 500 ft
Discharge: 1.5-12″
HP: 0.75 – 350
RPM: 850, 1150, 1750, 3450
Available in horizontal and vertical installations
- Available as pump only or with base mounting
- Horizontal and vertical options
- High strength steel shaft with renewable sleeves
- Packing or mechanical seal options
- Compact footprint
- Cartridge mounted thrust bearings
- All Iron or Bronze Fitted Construction
- Packing material
- Single or double seal configurations
- Shaft and Shaft Seal Materials
- Grease or oil lubricated bearings
- General Water Supply
- Booster Service
- Municipal Waterworks
- Water Circulation
