Residential Wastewater Portfolio

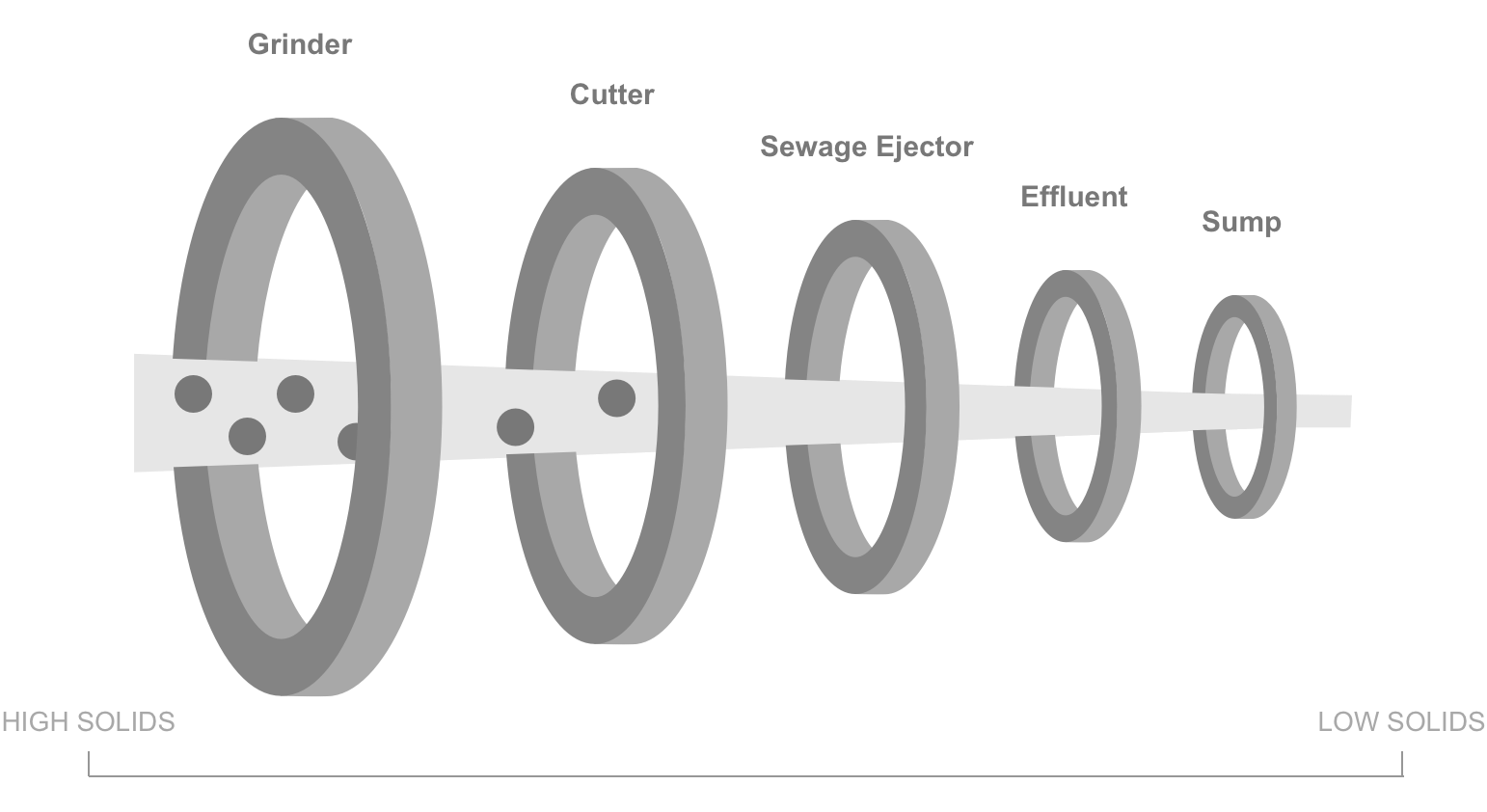

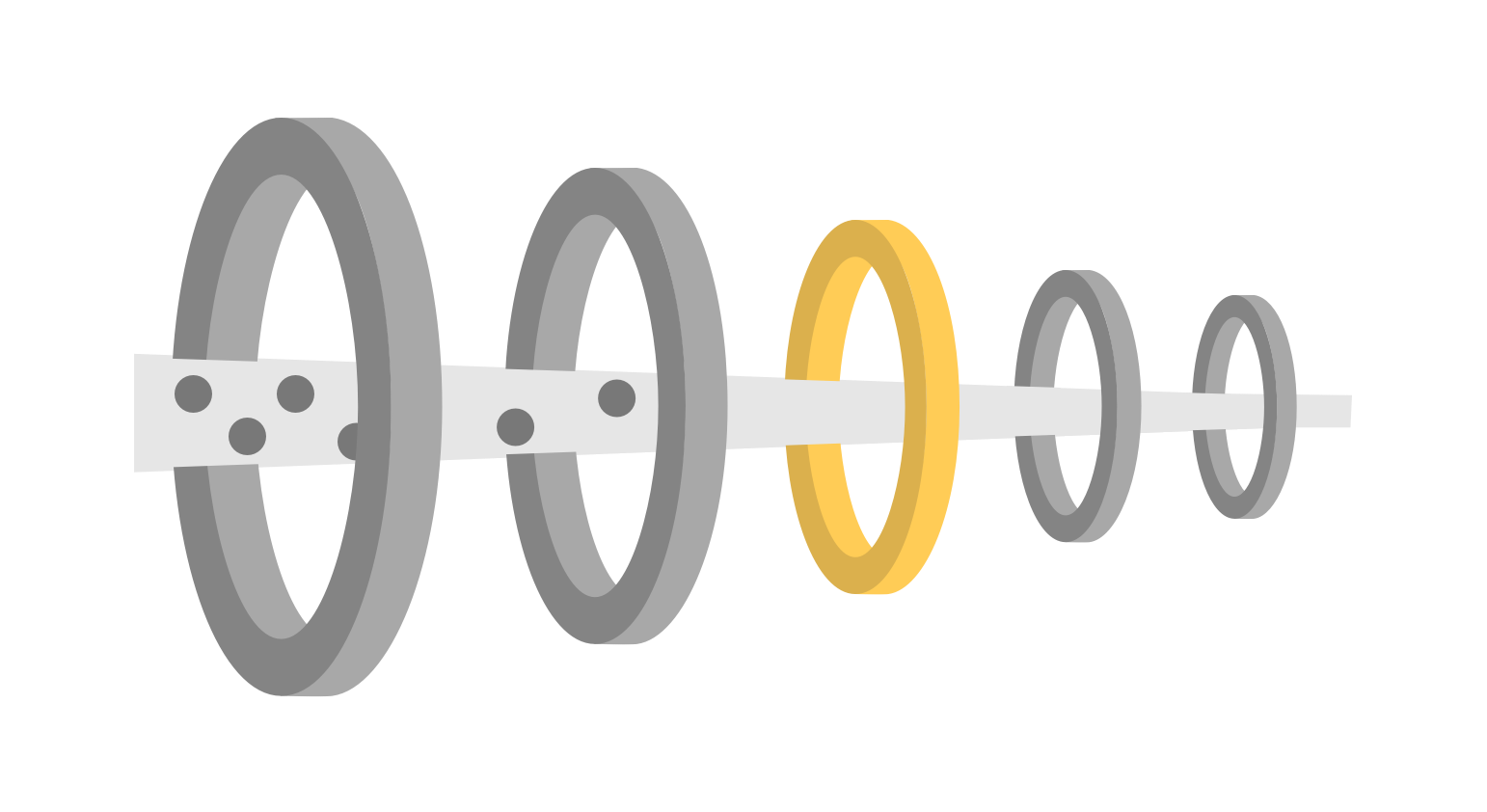

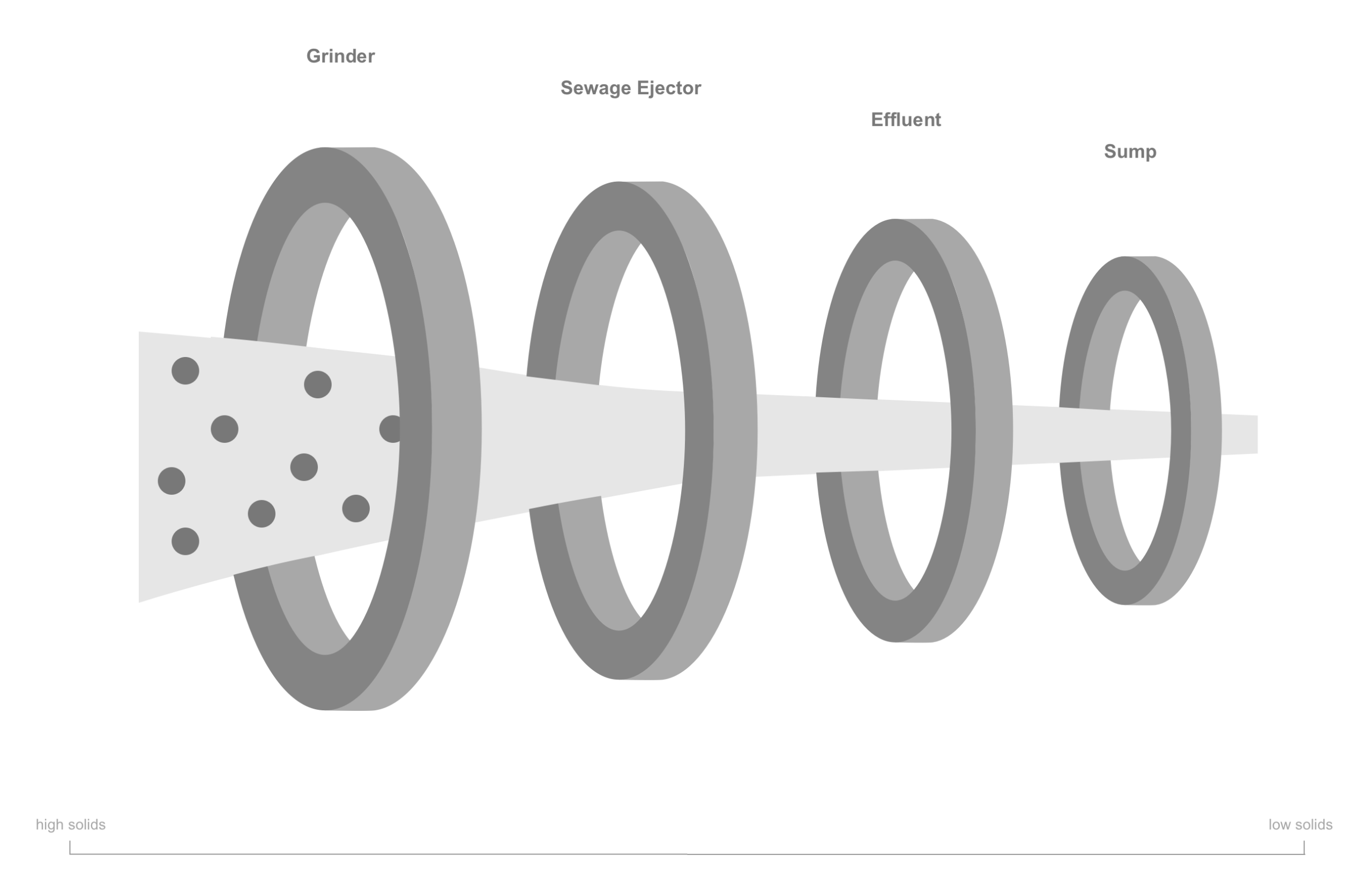

With a lot of products on the market, contractors are faced with the challenge of selecting an optimal pump for residential applications, particularly considering the varying solids content in the waste stream. Choosing the right pump for a home can be a nuanced decision, and the solids in the specific application play a crucial role in this determination. Explore each section in the image below to find a selection of CP&S products tailored to meet the solids handling requirements for residential projects.

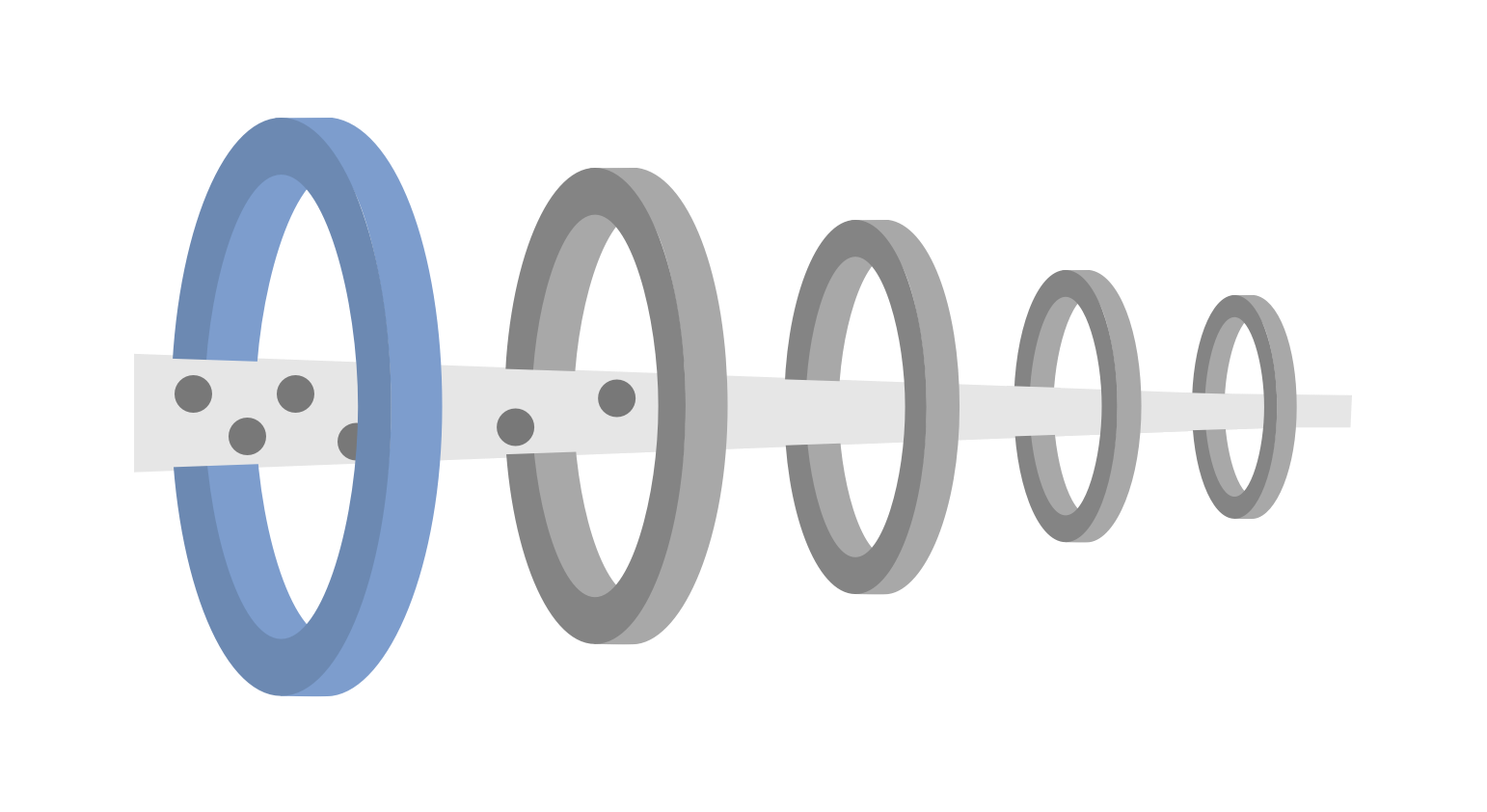

Grinder Pumps
Don’t have a ton of flow or need a lot of head at your waste station? A grinder pump might be the right solution for your needs. Barnes by Crane Pumps & Systems offers two grinder product families.
The RAZOR is a 2 HP grinder pump for residential and light commercial solids handling applications. With the Razor’s thoughtfully designed innovative axial cutting technology, it is engineered to efficiently reduce solids like flushable wipes, diapers, and other non-biodegradable items.
Need a little more power? The Blade is a 3 – 15 HP grinder pumps for wastewater applications requiring high capacity, high head and high flow.
Patented Axial Cutter
Provides superior non-clogging versus radial designs
Tank Mixing
Fat, oil, and grease build up is prevented by constant water movement
Easy Serviceability
Thoughtful, lightweight design requires only one tool for service
Explosion Proof Design
Product portfolio expanded to include explosion proof models suitable for hazardous locations
Axial Cutter
Provides Superior Non-Clogging versus Radial designs
Retrofit Capabilities
Designed for drop in retrofit to replace any existing small horsepower residential sewage pump
Float Options
Available in manual and automatic designs
Non-Overloading Design
Built to handle varying flows without wear

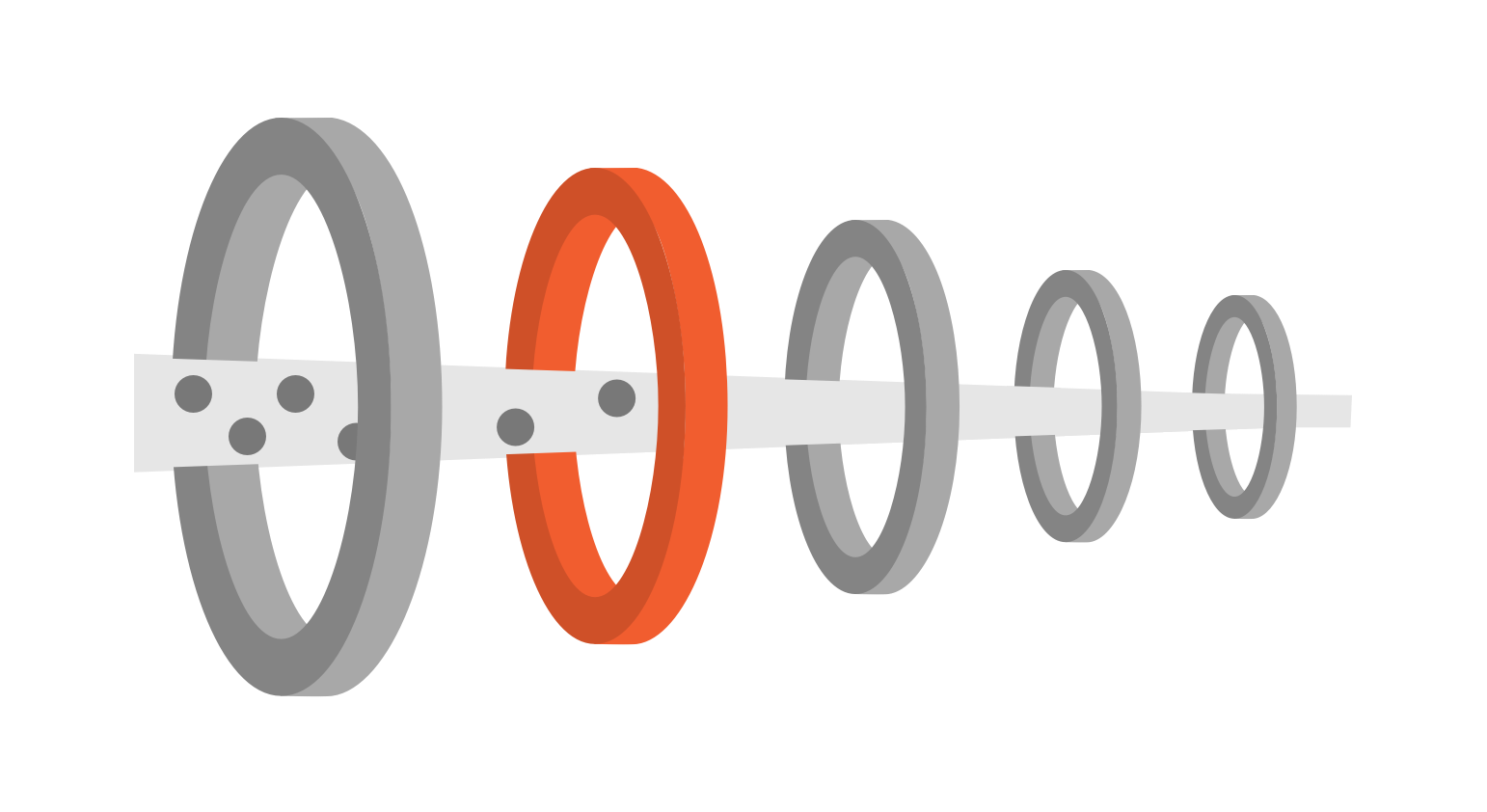

Cutter Pumps
Designed to solve clogging in residential application with light solids content, the Barnes SEC Cutter Pump is a 2–5HP offering that is packaged to retrofit into multiple installation types. Each pump is equipped with a JIS 80 discharge flange. Accessories are packaged with each pump to accommodate installations.
Superior Cutting
Steel cutting plate and impeller blade provide superior cutting.
Rugged Pump Design
Constructed with ASTM A-48 Class 30 Cast Iron
Adaptability
Removable stand and discharge accessories to fit perfectly in free-standing installations or on a variety of guide rail systems
Air Filled Motor
Air filled motor protected with integral moisture and temperature sensors
Package Features
3 Inch NPT Vertical Elbow: For use with the 2HP SEC Cutter.
4 Inch ANSI Class 125 Flange (with 4 Inch NPT threads) Vertical Elbow: For use with the 3HP and 5HP SEC Cutter.
JIS 80 to 4 Inch ANSI Horizontal Flange Adapter: For use with the 3HP and 5HP SEC Cutter.

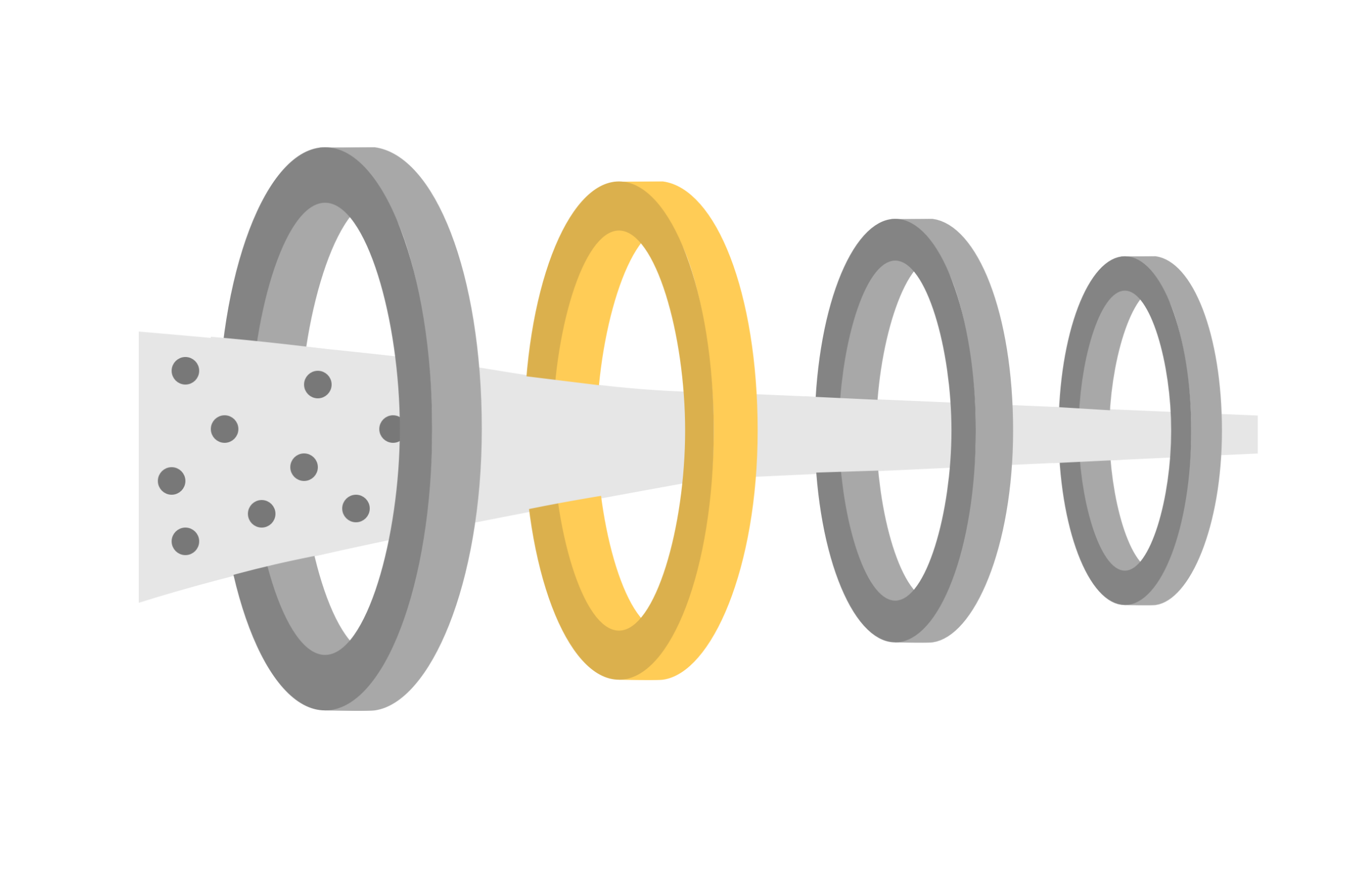

Sewage Ejector Pumps
Sewage ejector pumps play a crucial role in managing wastewater in buildings below the main sewer line. Typically installed in basements or lower levels, these pumps facilitate the movement of sewage and greywater to higher elevations, ensuring efficient disposal into the main sewer system.
Barnes sewage ejector pumps are known for their quality and reliability. Manufactured by Crane Pumps & Systems, the Barnes SE and SEV sewage ejector pumps feature robust construction. These pumps are designed to handle demanding sewage and wastewater conditions, incorporating durable materials to withstand corrosive elements.
Barnes sewage ejector pumps are available in various models, catering to different capacity and head requirements. This technology is essential for properties where gravity alone isn’t sufficient for sewage drainage, offering a reliable solution for effective and hygienic waste removal.
SE/SEV Pump Features
Heavy duty upper and lower ball bearings are oil lubricated for superior cooling and maximum life
The pump utilizes a combination of cast iron and stainless steel components to stand up to the toughest sewage ejector applications
Capable of handling between 2-3 inch spherical solids which help prevent clogging

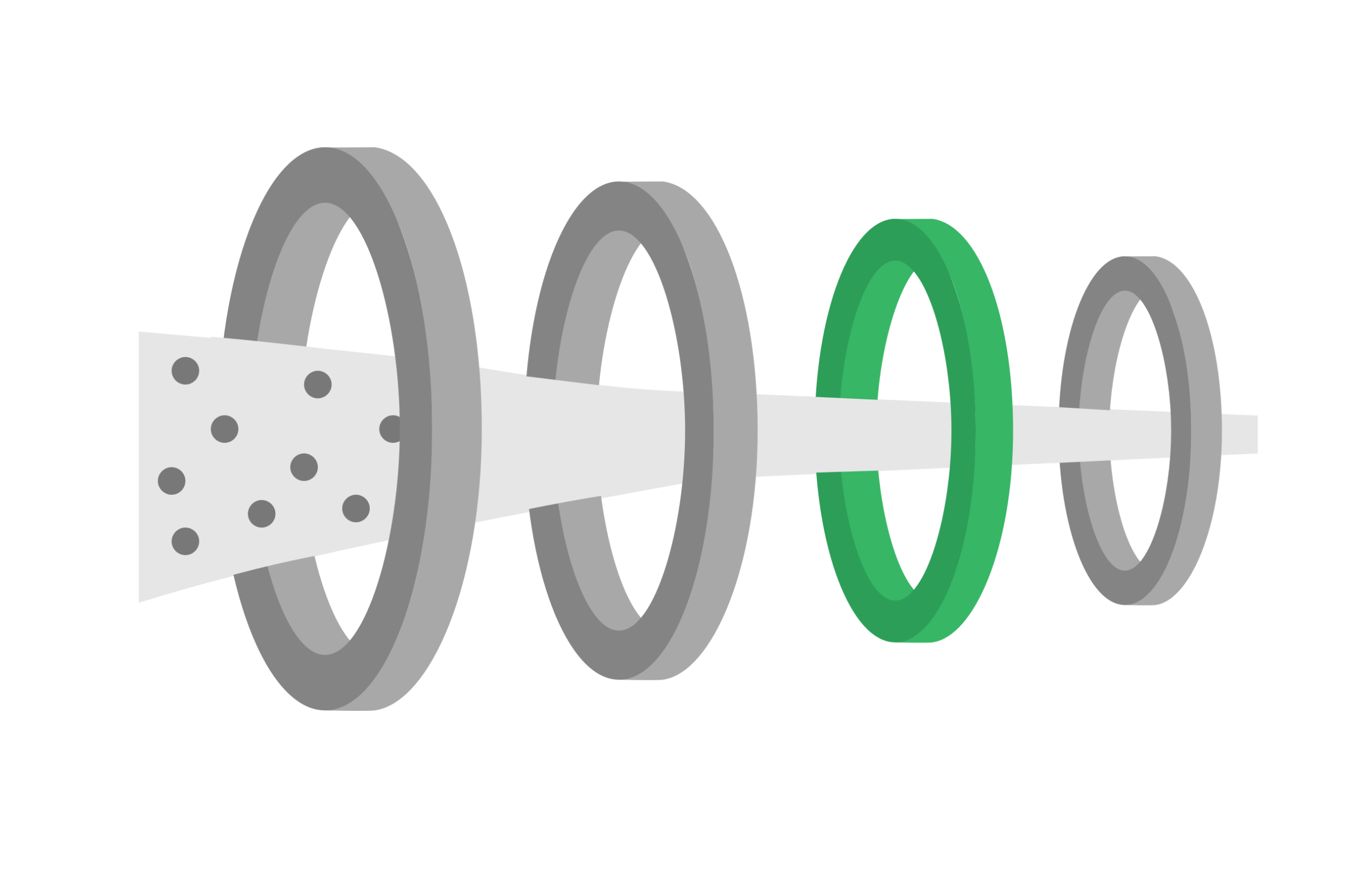

Effluent Pumps

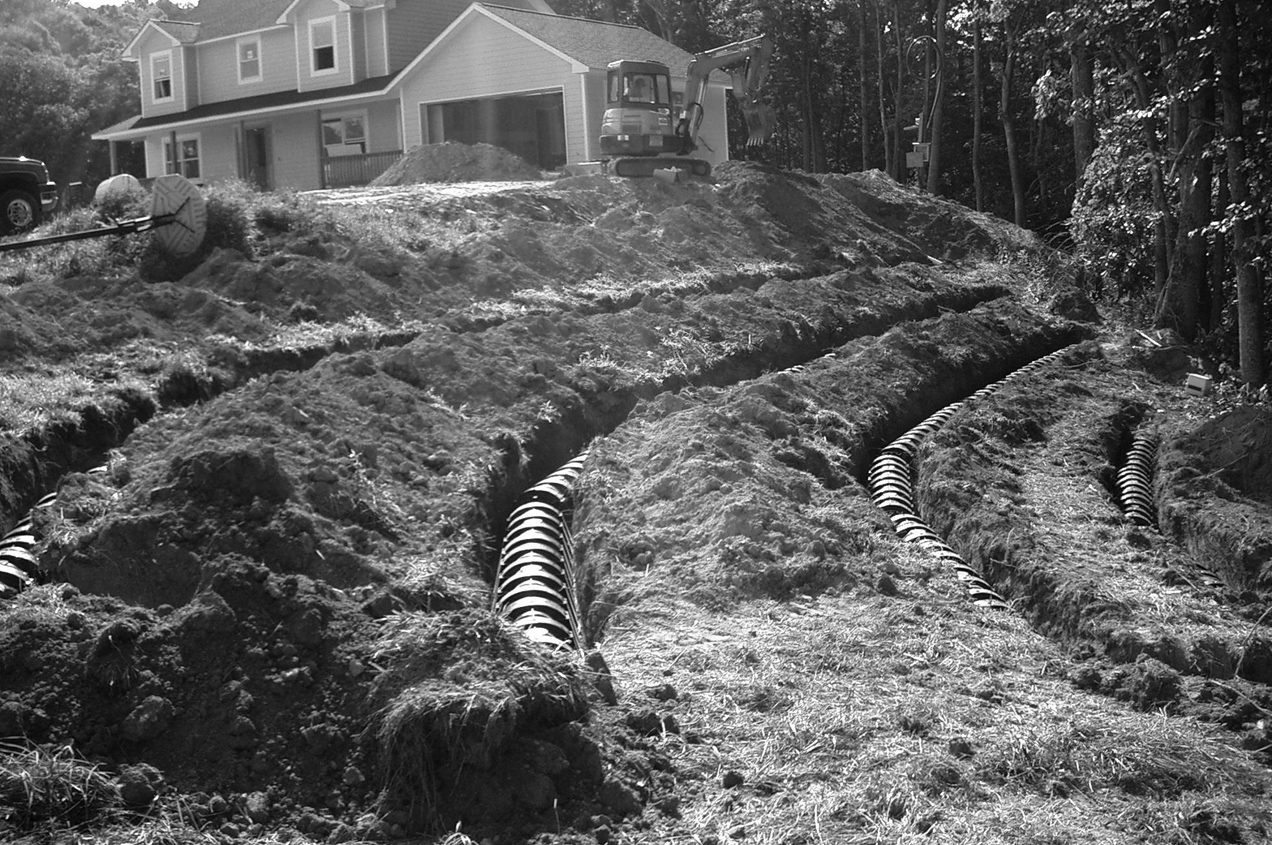

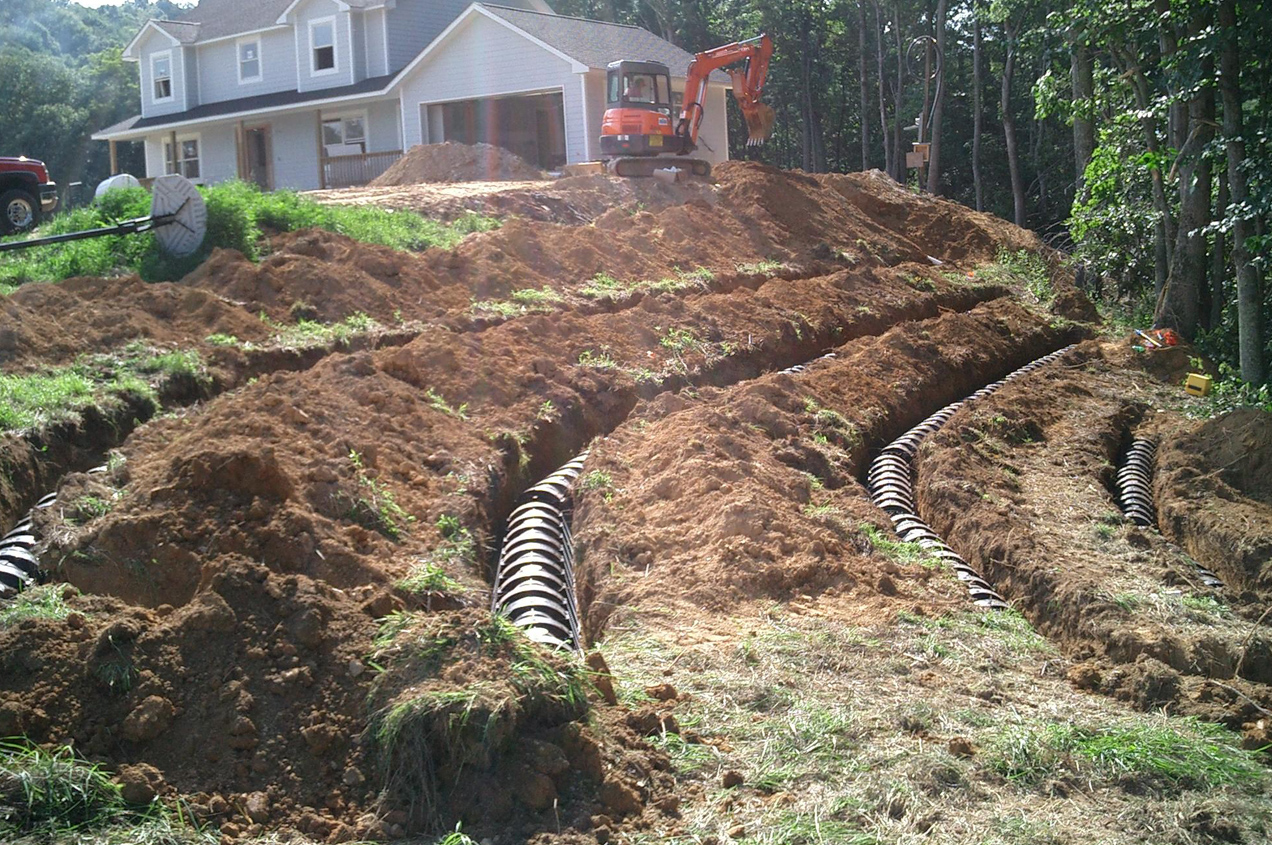

Effluent pumps play a vital role in homes by moving treated water from septic tanks. Specifically made for houses, Barnes provides various pump models tailored to the intricacies of managing residential wastewater.
These pumps aim to remove treated water effectively, contributing significantly to the cleanliness and eco-friendliness of home wastewater systems. The reliability and careful design of Barnes effluent pumps make them an excellent choice for homeowners aiming to maintain high environmental standards and the proper functioning of their wastewater systems.
Essentially, these pumps play a crucial role in ensuring efficient home wastewater processes and compliance with environmental rules, fostering a healthier and more sustainable living environment.
Barnes Effluent Pump Features
Cast iron housing and volute
416 Stainless steel shaft to handle aggressive effluent
Upper and lower ball bearing for quieter operation and longer life

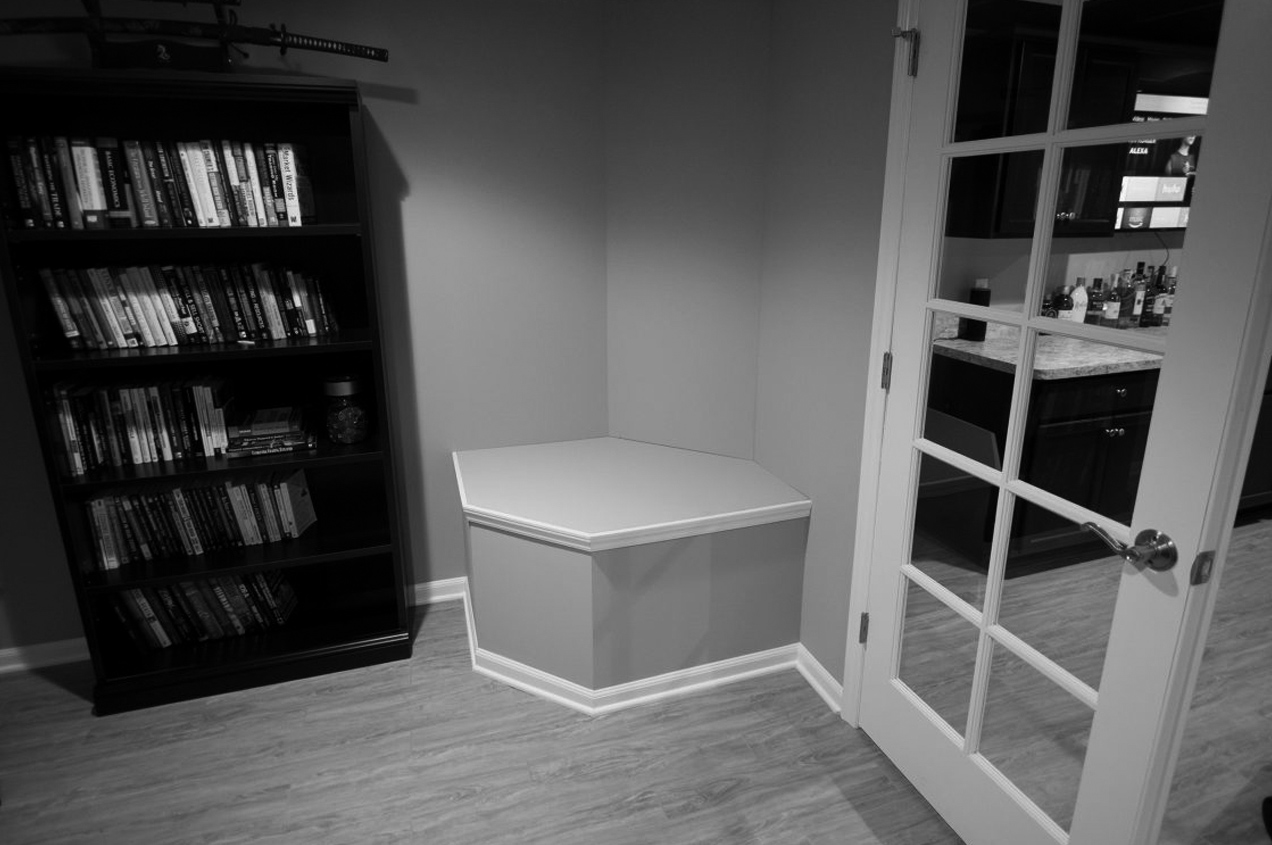

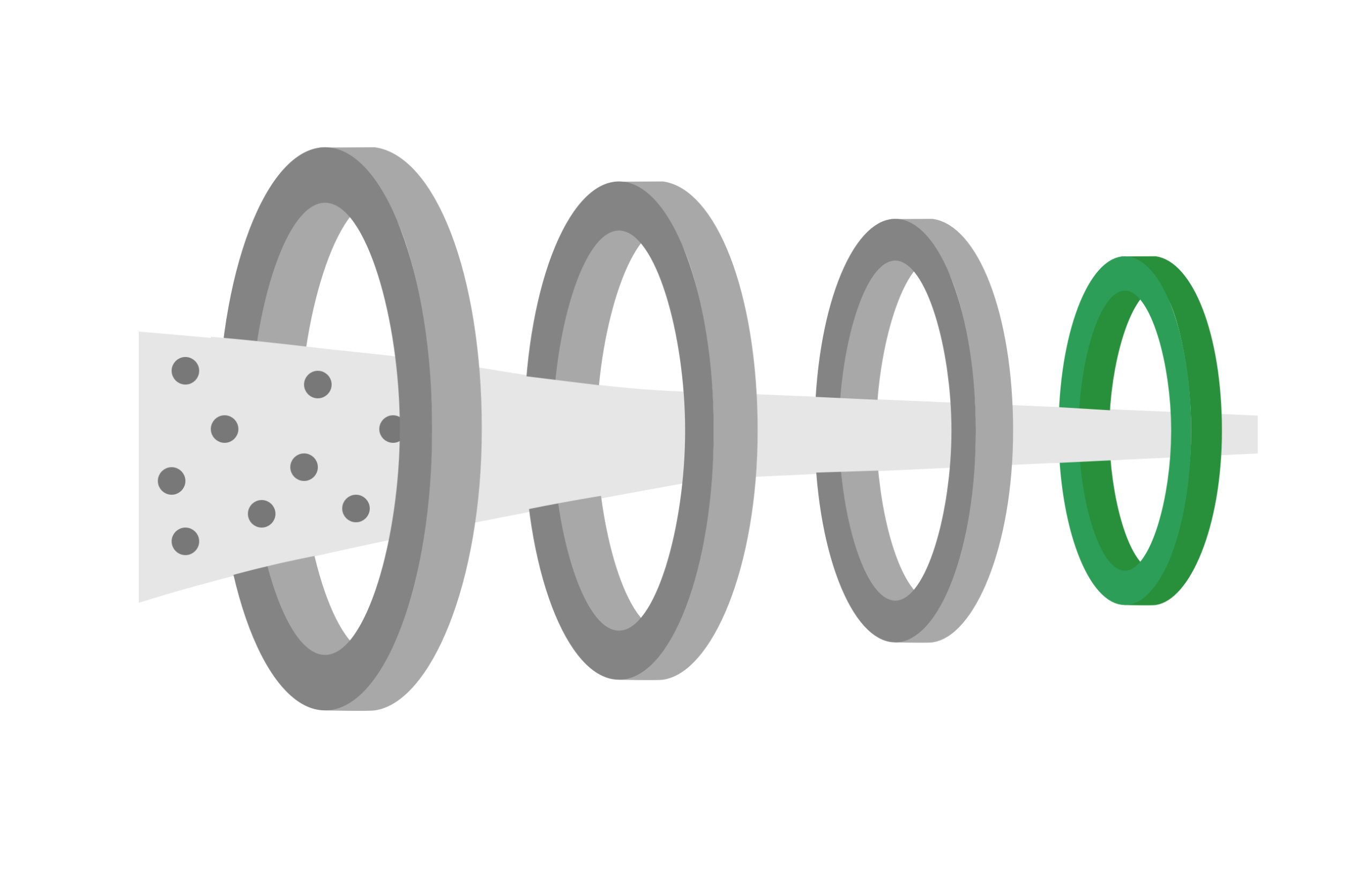

Sump Pumps

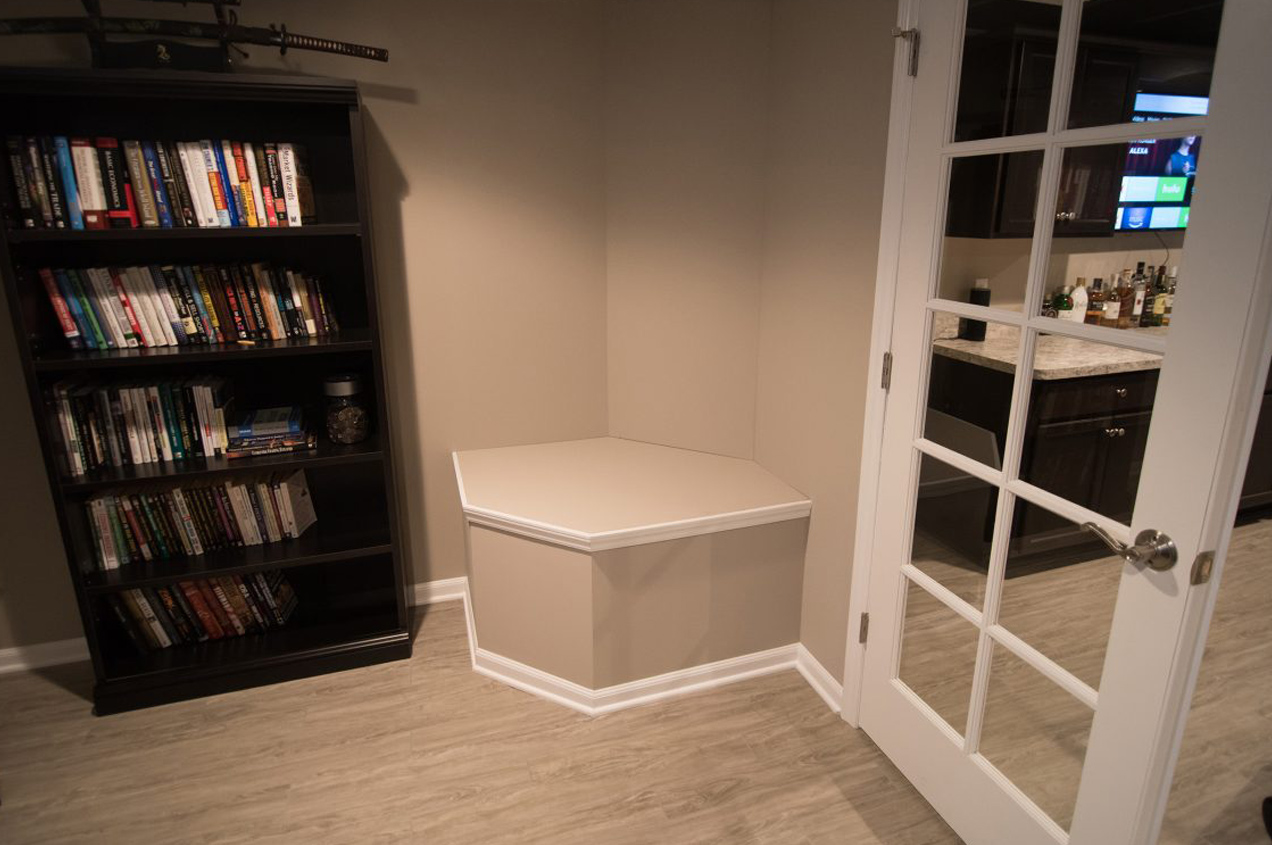

Barnes sump pumps are known for their robust construction, high performance, and reliability in handling water management challenges. These pumps are designed to prevent water damage by efficiently managing excess water in basements, crawl spaces, and other below-grade structures prone to flooding in homes.
With corrosion-resistant materials and advanced pump technologies, Barnes sump pumps are designed for the challenges of residential applications. Whether safeguarding homes, basements, or other living spaces, Barnes sump pumps efficiently and swiftly eliminate excess water, ensuring the protection of valuable possessions and preventing potential damage to property.
Expel Pump Features
Top suction volute prevents air lock and debris buildup
Oil lubricated ball bearings provide longer life and quieter operation
Type II mechanical seals provide superior motor protection
SP/EP Pump Features
One piece motor/volute housing avoid potential gasket failure
Oil lubricated ball bearings provide longer life and quieter operation
Permanent split capacitor motor for more efficient operating range
