Weinman End Suction Pumps

Flows To: 4,000 gpm
Heads To: 425 ft
Discharge: 1″-10″
HP: 0.33- 200

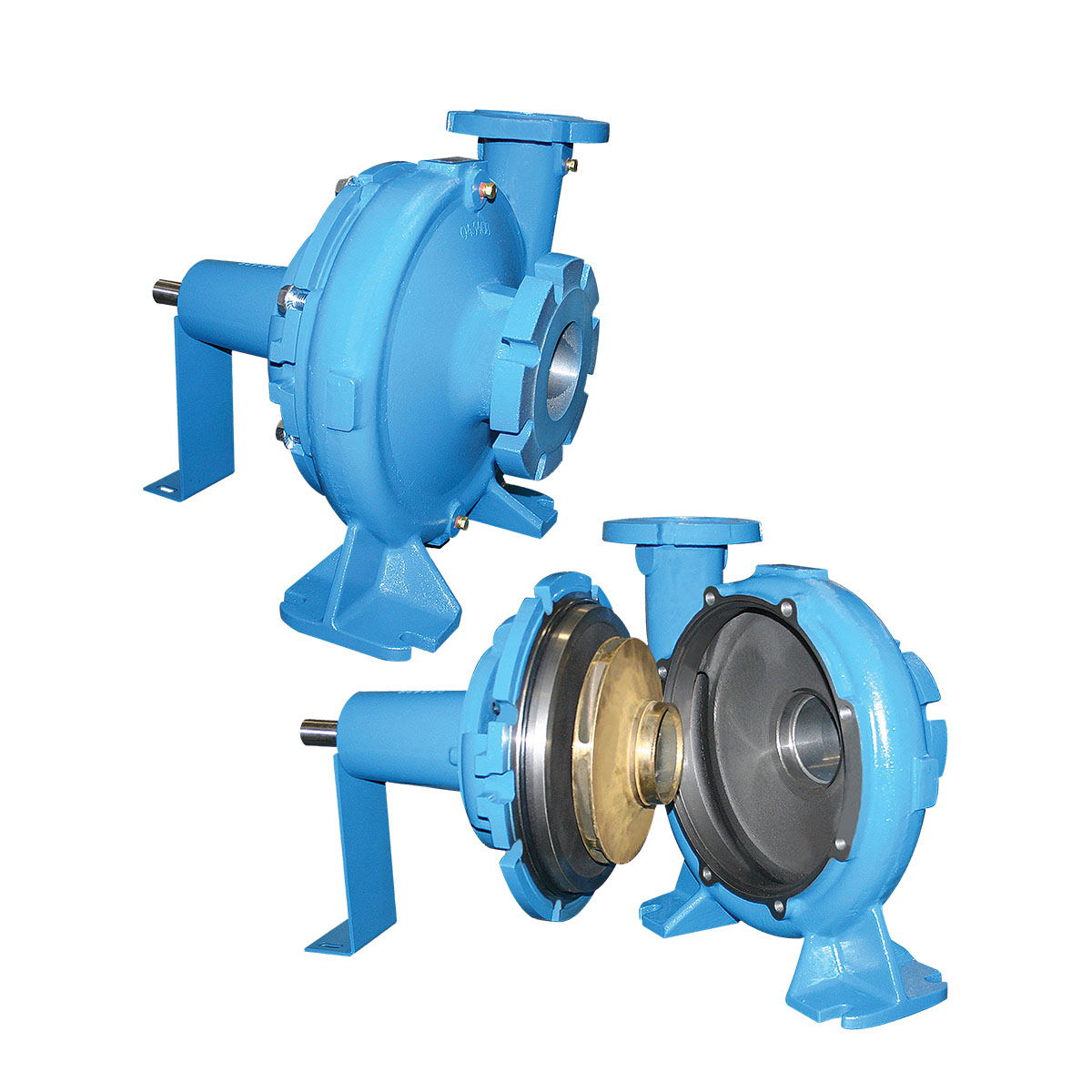

Weinman End Suction Pumps

MODEL: AC, AE, ACV, AEV, ADV, AFV, 310 & 500 G and K Series, 375 and 575 Back Pull Out Series

Weinman’s versatile end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for many commercial, industrial and municipal needs. Applications include condenser, chilled, and hot water systems in HVAC, process secondary pumping, and municipal drinking water. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

Flows To: 4,000 gpm
Heads To: 425 ft
Discharge: 1″-10″
HP: 0.33- 200
RPM: 1150, 1750, or 3450
Hz: 50 HZ models available

  • Threaded and Flanged Discharges
  • Bronze Impellers
  • Close Coupled and Frame Mounted Models
  • Back pull-out design on some models
  • Utilizes standard NEMA motors
  • Standard bronze fitted
  • Ductile iron casing
  • Mechanical seals for various applications and temperatures
  • Packed stuffing box
  • External flushing
  • Shaft sleeves-bronze or stainless steel
  • General Water Service
  • Chilled & Hot Water Systems
  • Cooling Tower
  • HVAC
  • Industrial Processes
  • Municipal Drinking Water
  • Sprinkler & Irrigation Systems
