Weinman Split Case

Flows to: 7,600 gpm
Heads to: 800 ft
Discharge: 2″ – 12″
HP: 1 – 400

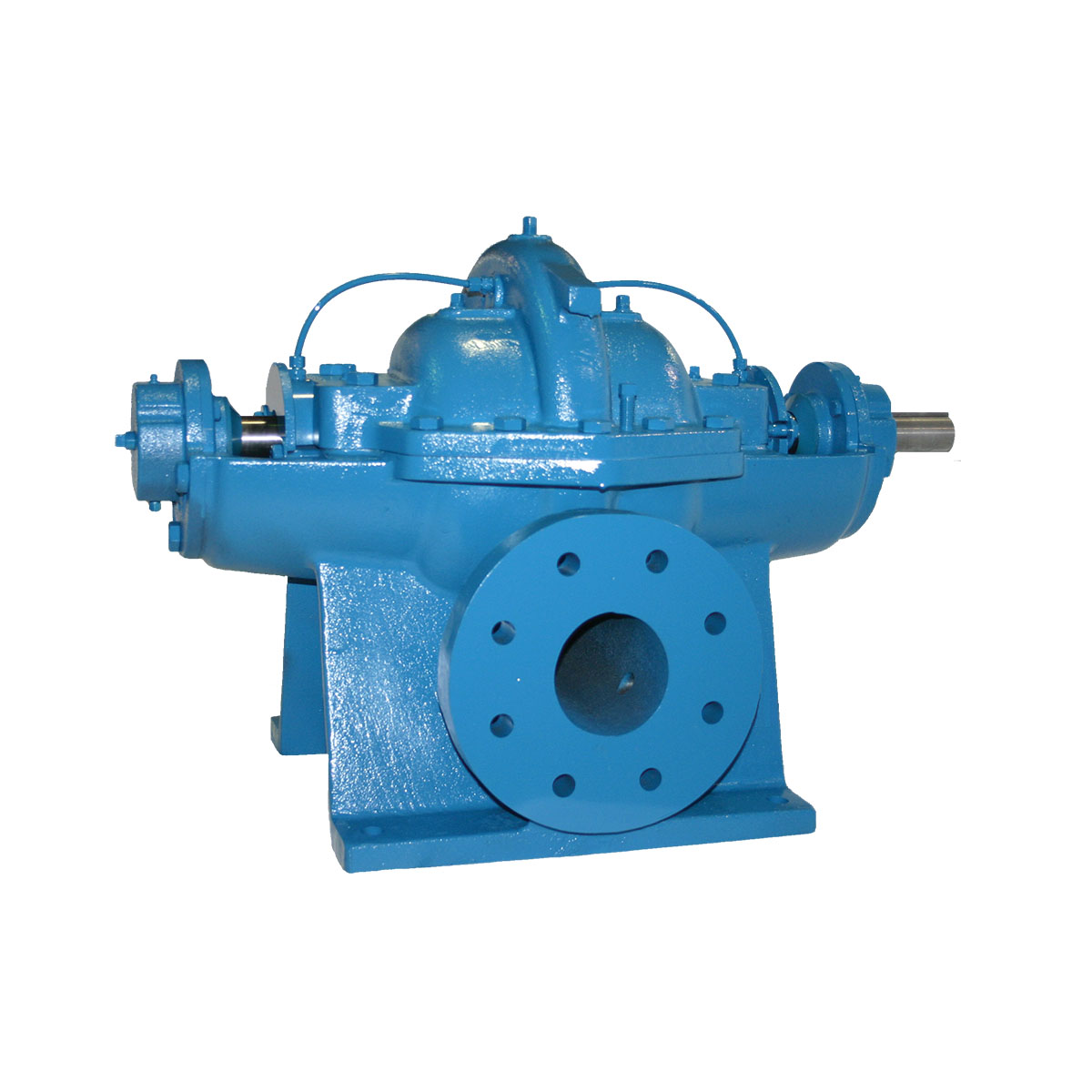

Weinman Split Case

MODEL: LVM Vertical Split Case, L Horizontal Split Case, JD Multistage Split Case

Weinman split case pumps meet a wide variety of service needs. The L Series single-stage and LVM vertically mounted pumps provide large capacity general service pumping. Rugged and reliable, they combine mechanical simplicity with sophisticated hydraulic design. Recognized for their quality, efficiency and excellent life cycle cost,

Flows to: 7,600 gpm
Heads to: 800 ft
Discharge: 2″ – 12″
HP: 1 – 400
RPM: 1150, 1750, 3450

  • Available as pump only and with base mounting
  • Vertical and Horizontal versions
  • Single and Multistage versions
  • Thrust collar and lip seal for easy maintenance
  • Base includes lifting holes for easy installation
  • Impeller Wear Rings
  • Sleeved Shaft
  • 300# Flanges
  • Upgrade Mechanical Seal Material
  • Water Jacketed Thrust Bearings (JD Series)
  • Double Shaft Extension (JD Series)
  • Recirculating Orifice (JD Series)
  • General Water Service
  • Domestic Water Booster System
  • Chilled & Hot Water Systems
