Looking for System Design Support for Reliable Residential Grinder Pump Stations?

Pressure Sewer Overview

Hydraulic System Design

Our Pressure Sewer Specialists have the expertise to support system design in challenging applications including seasonal usage, extreme weather, floodplain applications, re-pump applications and more! Complimentary hydraulic design services allow us to provide all the design support you require to help minimize upfront infrastructure costs by as much as 60% compared to gravity systems.

The report we provide you will include:

  • Color coded pipe layouts
  • System design
  • Design specifications
  • Design consultation
  • Budgetary estimates
  • Product drawings and specifications

Whether you are planning for a new construction or replacing an old system, our team can provide you with an analysis to make you confident in your investment!

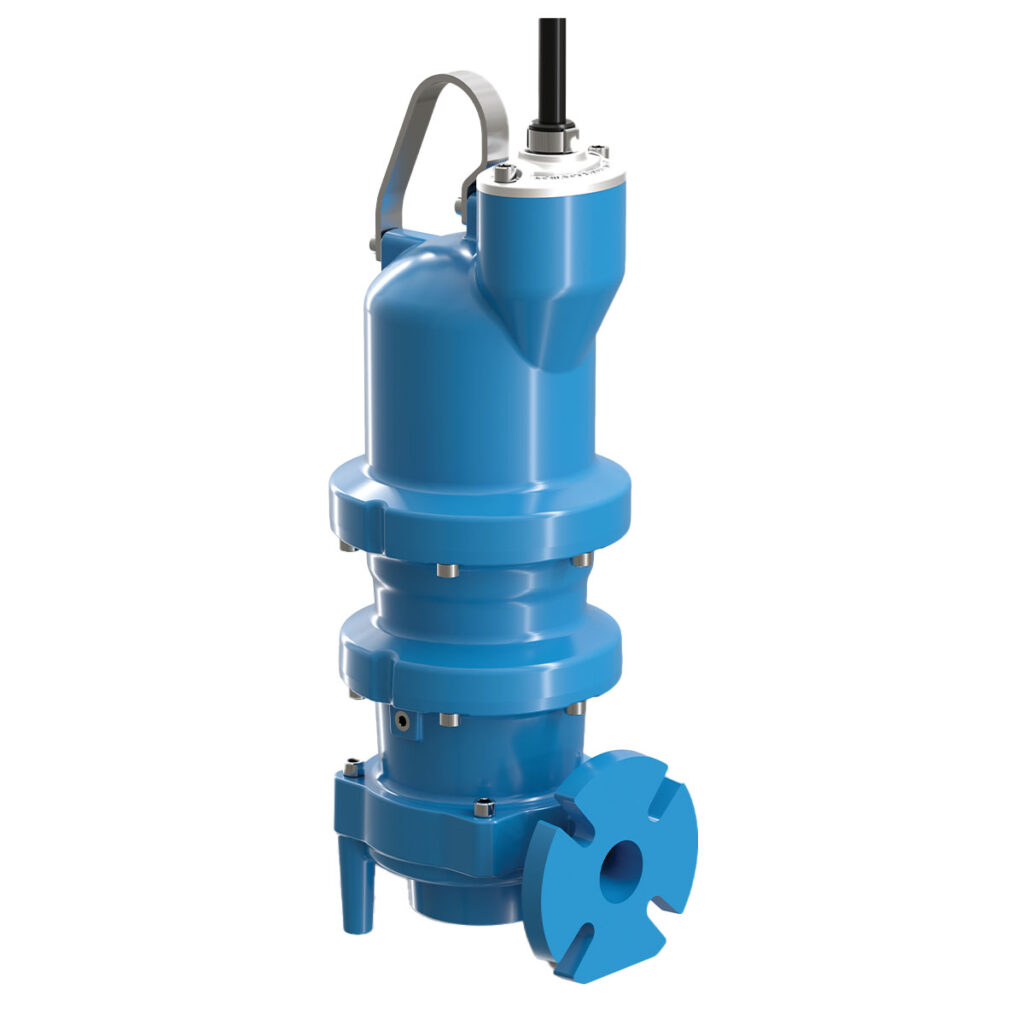

2 HP grinder pump for residential and light commercial solids handling applications.

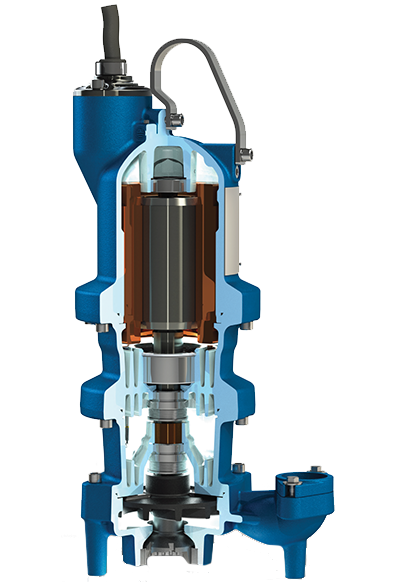

Pump Design

  1. Plug-n-play cord simplifies service
  2. Oil-Filled Motor for optimal motor cooling and maximum bearing life
  3. Stainless steel hardware provides resistance against corrosion to extend pump life
  4. Simplified hardware requires only one standard tool for service
  5. Axial Cutter design greatly reduces clogging issues due to troublesome objects
  6. Available in multiple discharge configurations for simple installation and replacement
  7. Heavy duty, oil-lubricated bearings extend pump life
  8. Oversized stainless steel lifting bail and lighter weight allows for easy installation by hand or hoist
  9. Two stage impeller design ideal for pressure sewer applications (single stage model is also available)

Package Options

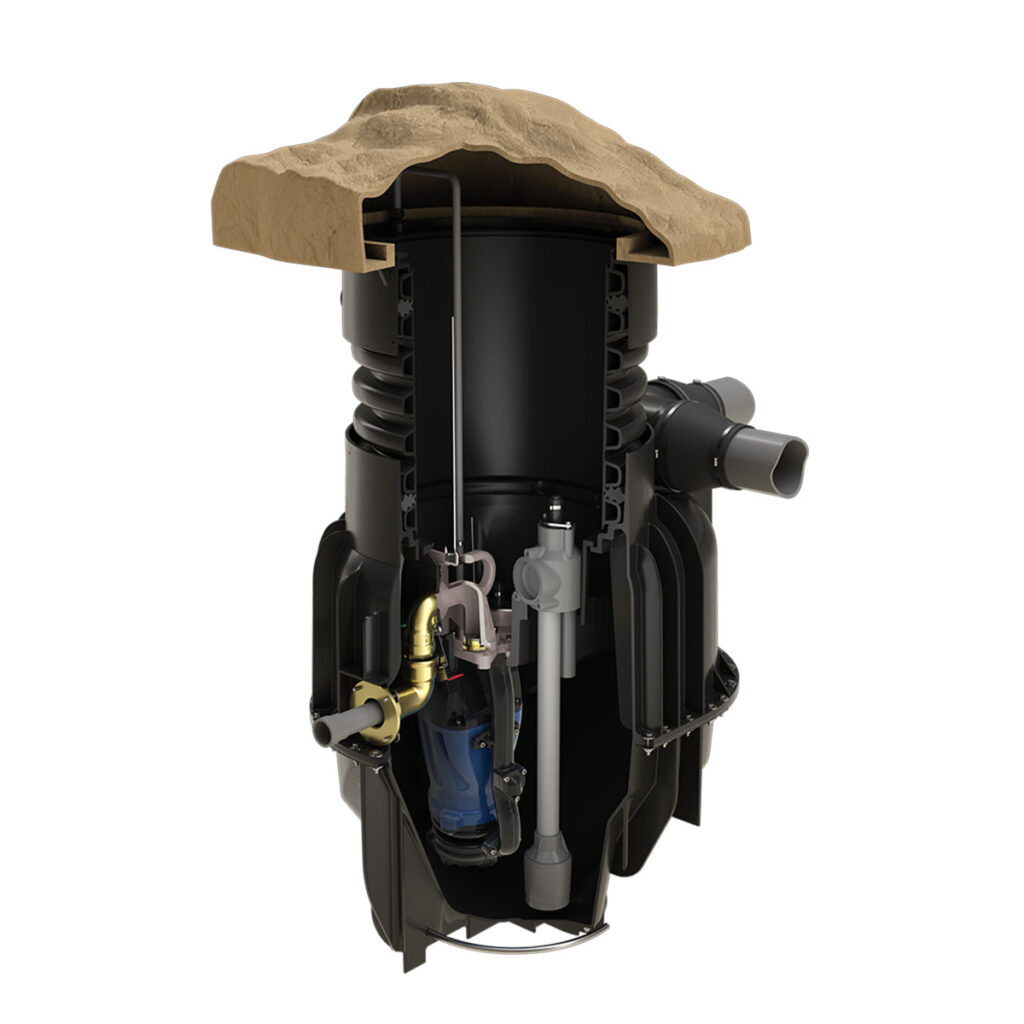

EcoTRAN basin packages are designed for superior installation, serviceability and aesthetics.

EcoTRAN Features

The Barnes fiberglass basins provide residential grinder packages with the variability for each unique installation.

C-Channel Basin Features

The Barnes Upgrade Core provides a drop-in replacement to upgrade competitor’s grinder pump stations.

Upgrade Core Features

3 – 15 HP grinder pumps for wastewater applications requiring high capacity, high head and high flow.

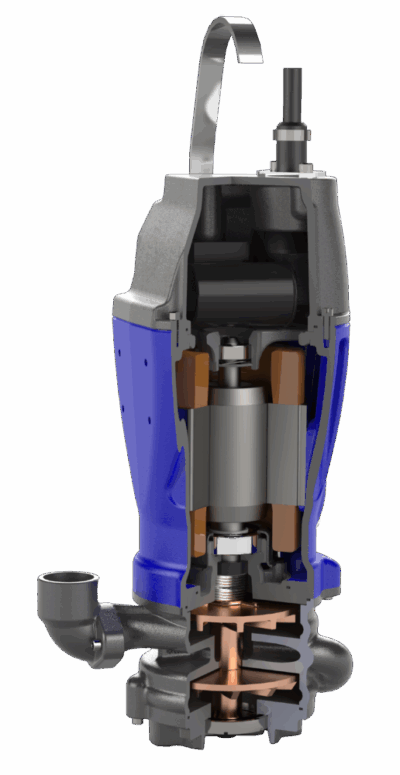

Pump Design

  1. Plug-n-play cord simplifies pump installation with its quick disconnect capability
  2. Oil-Filled Motor for optimal motor cooling and maximum bearing life
  3. Stainless steel hardware provides resistance against corrosion to extend pump life
  4. Moisture detection probe alerts pending seal issues before water can enter the motor
  5. Vortex impeller design greatly reduces clogging issues due to troublesome objects
  6. Exclusive Slicerator™ slices with the full torque of the motor acting on a small area to provide the ultimate solution in solids reduction
  7. Available in vertical or horizontal discharge for simple installation and replacement (18 frame only)
  8. Double mechanical seals provide maximum motor protection
  9. Heavy duty, oil-lubricated bearings extend pump life
  10. Large lifting Bail allows for easy installation
  11. Optional explosion proof design gives an added peace of mind for pump operation and safety; Class I Division 1 Groups C & D motors
